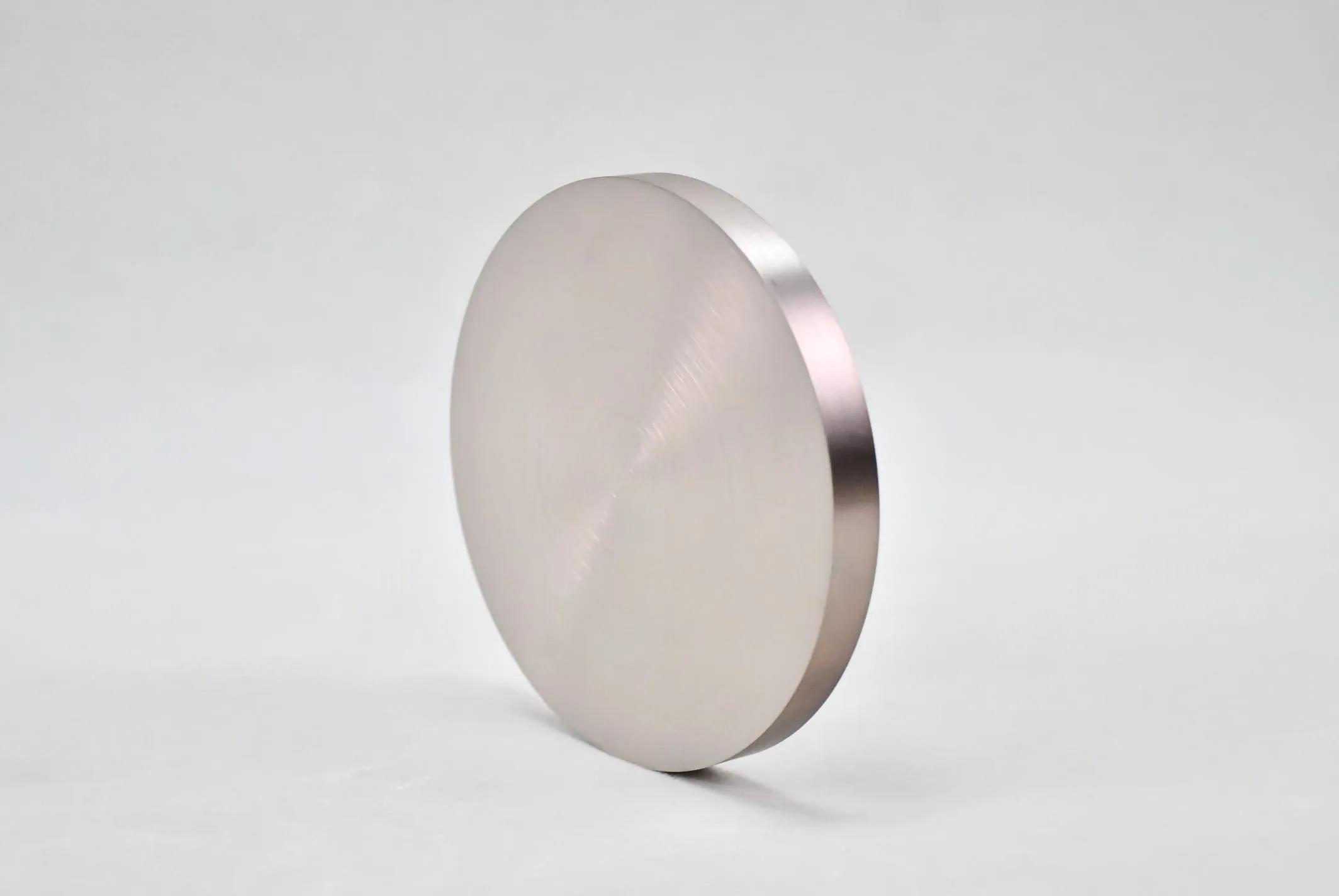

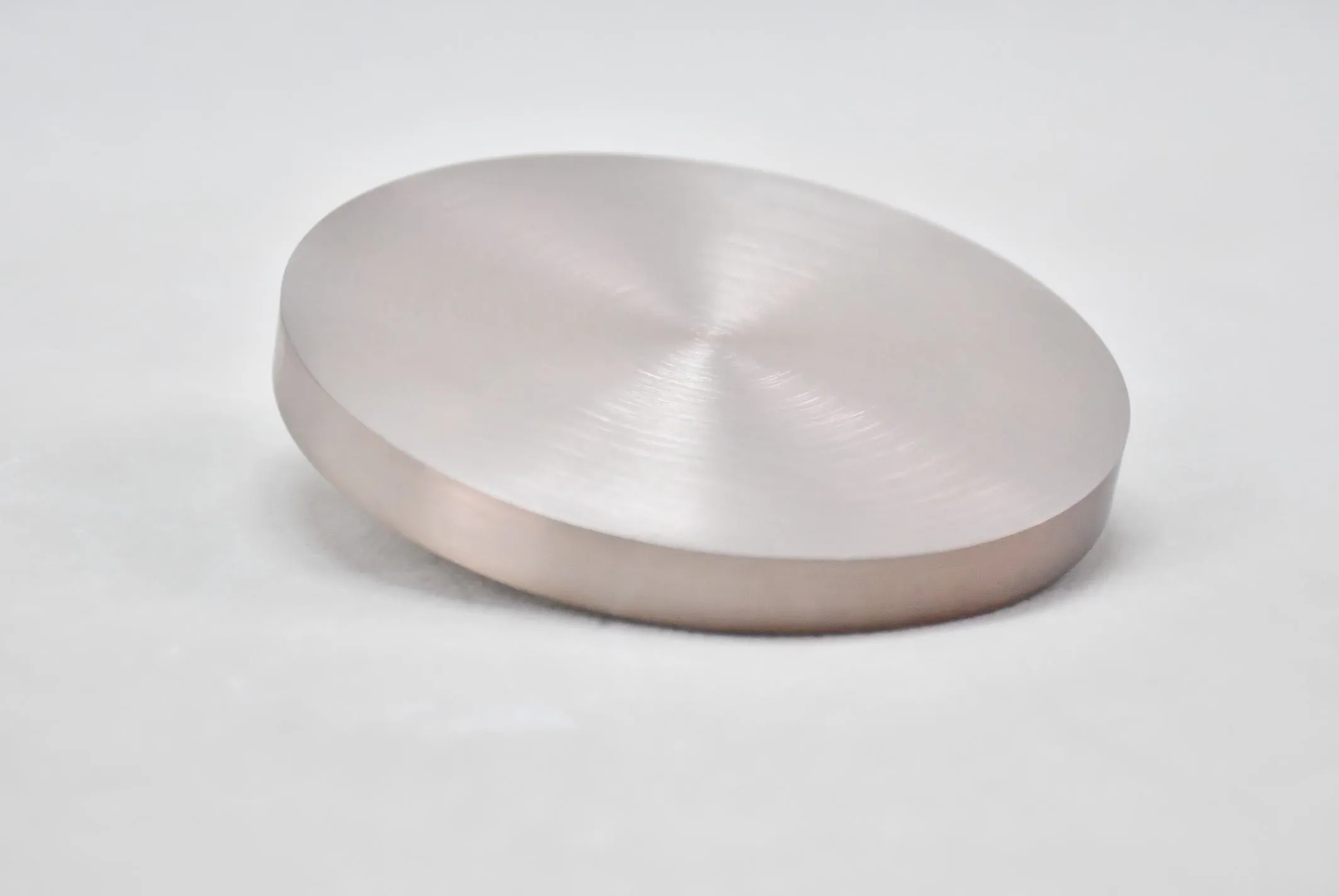

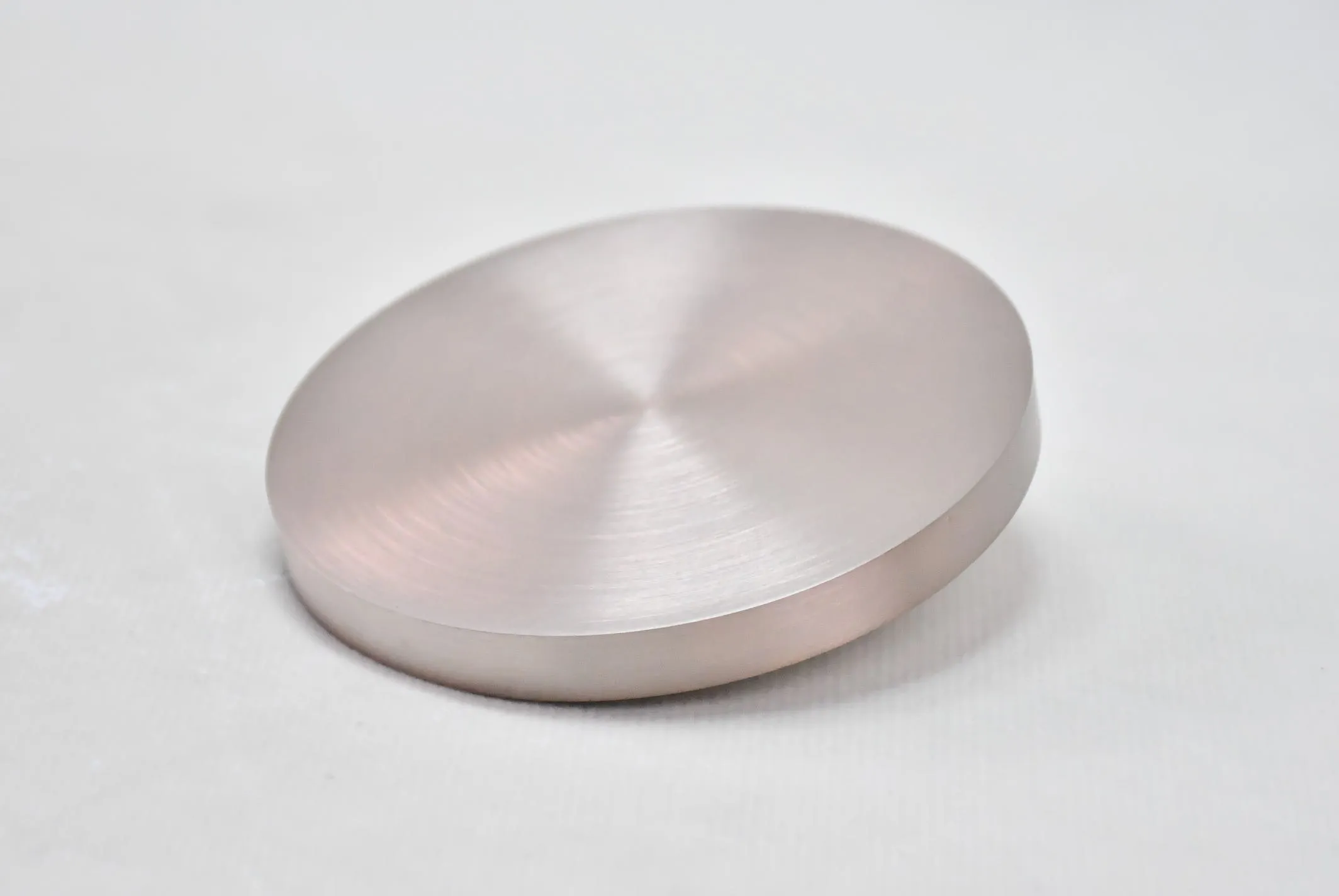

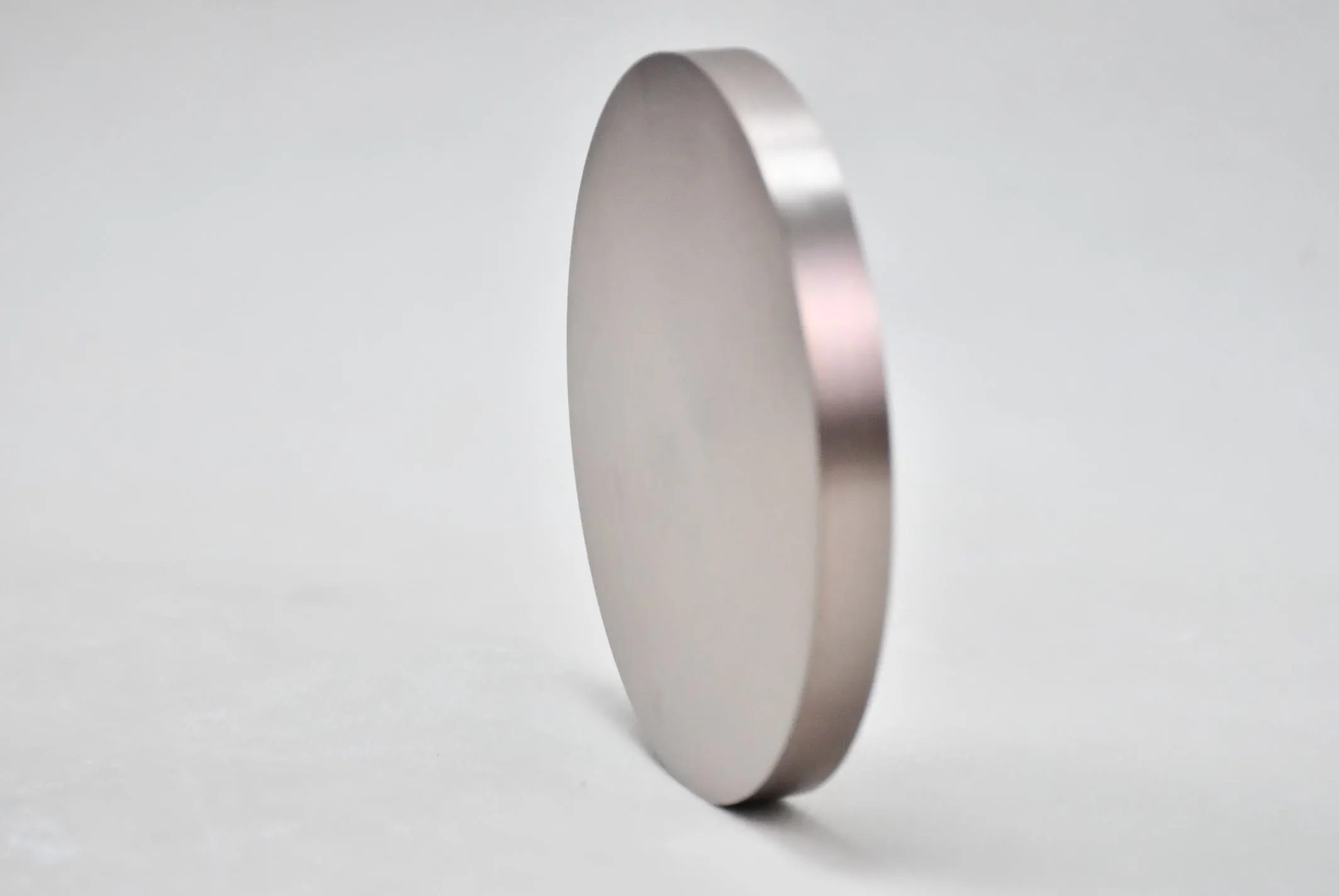

75WCu Tungsten Copper Components for CNC Machining Equipment

Product Introduction

Zhuzhou Jiuding Metal Technology Corp Ltd specializes in high-precision manufacturing and customization of 75WCu Tungsten Copper Components for CNC machining equipment, precision machine tools and industrial mechanical systems. 75WCu alloy consists of 75% high-purity tungsten and 25% copper, offering a perfect combination of tungsten’s high rigidity, wear resistance and low expansion, and copper’s superior thermal conductivity and excellent machinability. As a core functional and structural material for modern CNC equipment, 75WCu components maintain stable physical performance under long-term high-temperature, high-speed and heavy-load operating conditions, effectively improving equipment precision, heat dissipation efficiency and overall service life.

Traditional steel, brass and pure copper machine parts commonly suffer from thermal deformation, poor heat dissipation, low rigidity and severe wear during continuous CNC machining, resulting in accuracy attenuation, unstable operation and frequent part replacement. Our premium 75WCu tungsten copper components completely solve these industry pain points. With optimized alloy proportion and dense microstructure, the material delivers outstanding dimensional stability and thermal management performance, making it the ideal upgrade accessory for high-precision CNC machining equipment.

Core Material Advantages of 75WCu Tungsten Copper

Manufactured via advanced powder metallurgy and copper infiltration processes, our 75WCu tungsten copper components feature uniform microstructure, zero porosity, stable chemical composition and excellent batch consistency. The material integrates multiple superior mechanical and thermal properties uniquely suitable for CNC machining equipment parts:

• Superior Thermal Conductivity: 75WCu alloy provides efficient heat dissipation, rapidly conducting away high temperature generated during long-term CNC operation and cutting processes. It effectively avoids local heat accumulation and thermal deformation of mechanical parts, ensuring consistent equipment precision.

• Ultra-Low Thermal Expansion: With a low linear expansion coefficient, the material maintains excellent dimensional stability under drastic temperature changes, minimizing thermal displacement and precision loss of CNC structural components.

• High Rigidity & Wear Resistance: High tungsten content endows 75WCu with high hardness and structural rigidity, greatly resisting mechanical wear and micro-deformation during high-frequency operation, extending component service life significantly.

• Excellent Structural Stability: Dense and uniform alloy structure delivers strong fatigue resistance and oxidation resistance, adapting to long-duration continuous industrial operation without structural failure or performance attenuation.

• Fine Machinability & Assembly Performance: Balanced tungsten-copper ratio supports ultra-precision grinding, turning and drilling, enabling high-tolerance finishing for complex-shaped CNC equipment accessories with perfect assembly compatibility.

Product Performance Features

• High Precision Equipment Matching: All 75WCu components are precision finished in strict accordance withGB/T 1804 general dimensional tolerance standard, achieving ultra-high dimensional accuracy and interchangeability for high-end CNC machine tool assembly.

• Stable High-Temperature Operation: No thermal softening, deformation or precision drift under long-term high-temperature working conditions, guaranteeing long-term stable operation of machining equipment.

• Low Maintenance & High Cost Performance: Excellent wear resistance and structural stability reduce component replacement frequency and equipment downtime, effectively lowering overall production and maintenance costs.

• Strict Environmental Compliance: All products pass RoHS and REACH certification, fully complying with EU environmental protection and safety regulations for industrial mechanical parts.

• Full Customization Support: Customizable size, shape, hole positions, threads and precision tolerances according to customer drawings, supporting standard and non-standard CNC equipment component development.

• Smooth & Dense Surface: Adopts ultra-precision grinding treatment with flat, smooth and defect-free surface, ensuring stable clamping, precise fitting and consistent mechanical performance.

75WCu Standard & Technical Parameters

Executive Standards: GB/T 8320 Tungsten Copper Alloy Standard, ASTM B702 Tungsten Copper Alloy International Standard, GB/T 8320 Copper-Tungsten Alloy National Standard, ASTM B702Copper-Tungsten Electrical Contact Material Standard, GB/T Tungsten Copper Alloy Standard, GB/T 1804 General Dimensional Tolerance Standard General Dimensional Tolerance Standard, EU RoHS & REACH Environmental Protection Certification Standards.

Testing Standards: Alloy composition tested by XRF spectral analysis; density, hardness, thermal conductivity and dimensional tolerance fully inspected per national industrial standards; 100% batch testing for stable and consistent performance.

75WCu Typical Physical & Mechanical Properties

• Alloy Grade: 75WCu (75% Tungsten + 25% Copper)

• Density Range: 14.8–15.2 g/cm³

• Hardness: HB 220–260

• Thermal Conductivity: ≥180 W/(m·K)

• Melting Point: 2800–3000℃

• Linear Expansion Coefficient: 6.5–7.0×10⁻⁶ /℃

Application Scenarios

75WCu tungsten copper components are indispensable core parts for high-precision CNC machining equipment, widely applied in mold manufacturing machinery, precision lathes, milling machines, drilling equipment and automated production machinery, covering multiple high-end industrial fields:

• CNC machine tool structural accessories, precision fixtures and positioning components

• High-efficiency heat dissipation parts for high-temperature continuous machining equipment

• Wear-resistant functional components for long-cycle automated processing machinery

• Ultra-precision mechanical parts for mold CNC finishing and high-precision cutting equipment

Production & Quality Assurance

All 75WCu tungsten copper components are produced via mature powder metallurgy and vacuum copper infiltration processes, fully compliant with GB/T 8320 domestic industry standard and ASTM B702 international standard. Fully compliant with GB/T 8320-2025 domestic standard and ASTM B702-93(R2024) international industry specification. Featuring dense internal structure, no pores, uniform composition and stable mechanical performance, w, our products undergo full-process strict quality control, including raw material inspection, pressing & sintering monitoring, precision dimension machining and 100% finished product testing, ensuring every batch meets unified international and national technicalunified international and national technical specifications.

Our products fully comply with RoHS and REACH EU environmental protection standards, and all precision dimensions are strictly controlled per GB/T 1804 tolerance specification, ensuring excellent assembly accuracy and part interchangeability. The factory holds ISO 9001, ISO 45001, ISO 18001 and ISO 13485 system certifications. We provide official COA certificates, factory inspection reports and third-party test documents to support global customer procurement and customs clearance. Custom OEM & ODM services are available for various standard and non-standard 75WCu CNC machining equipment components.
